EFC Design 1067: Notes & Illustrations

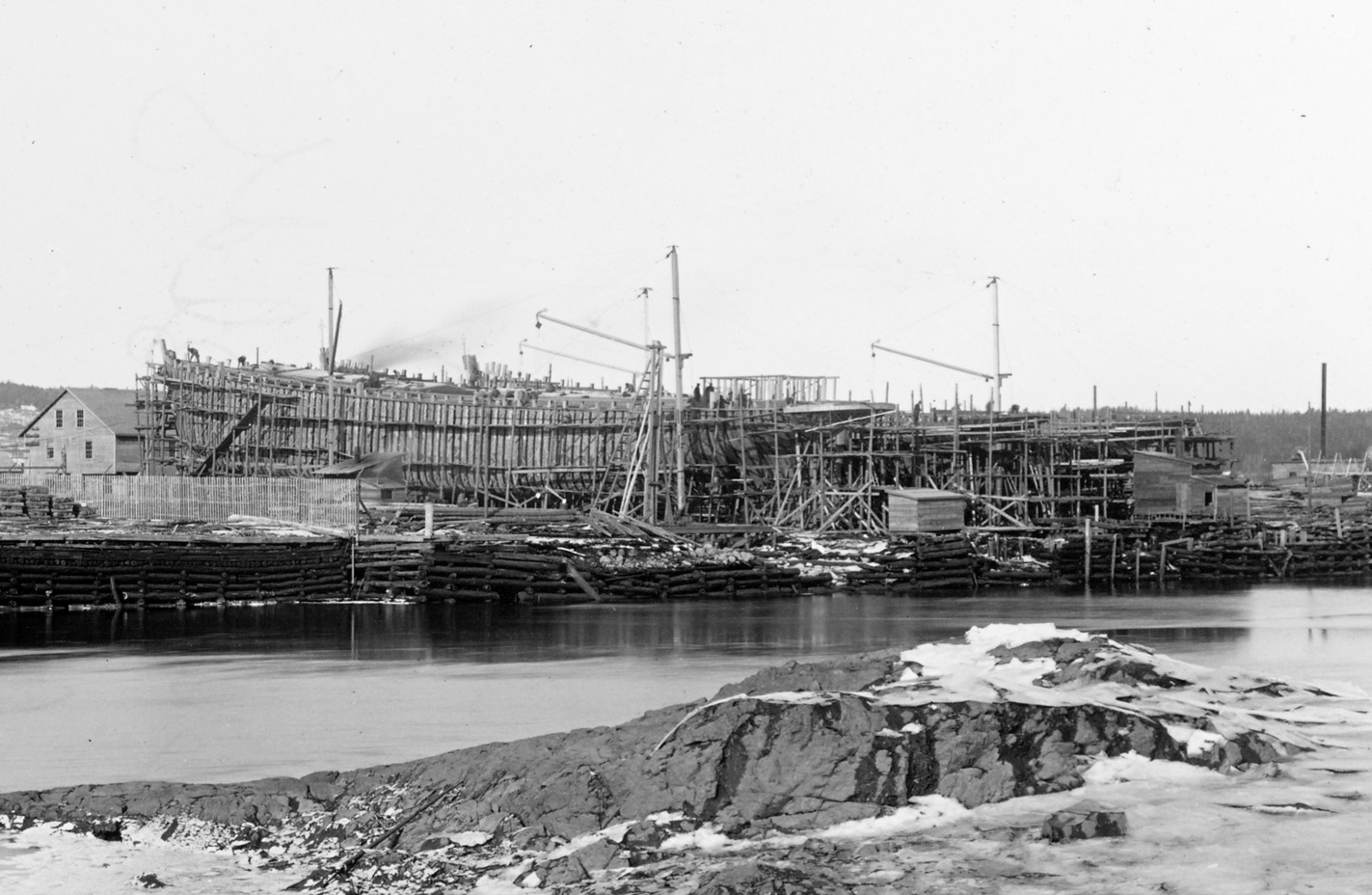

Three Design 1067 barges on the ways at the Machias Ship Construction Co., Machias, ME, during the winter of 1918-1919. They are Wellesley ex Lubec, Jonesport ex Cutler, and Cutler ex Jonesport (EFC Hulls 2323-2325 respectively). The latter two swapped names on 28 February 1919. A fourth, Larrabee, was cancelled on 29 October 1918. They were the yard's only EFC order. (NHHC: NH 43183) (Click photo to enlarge)

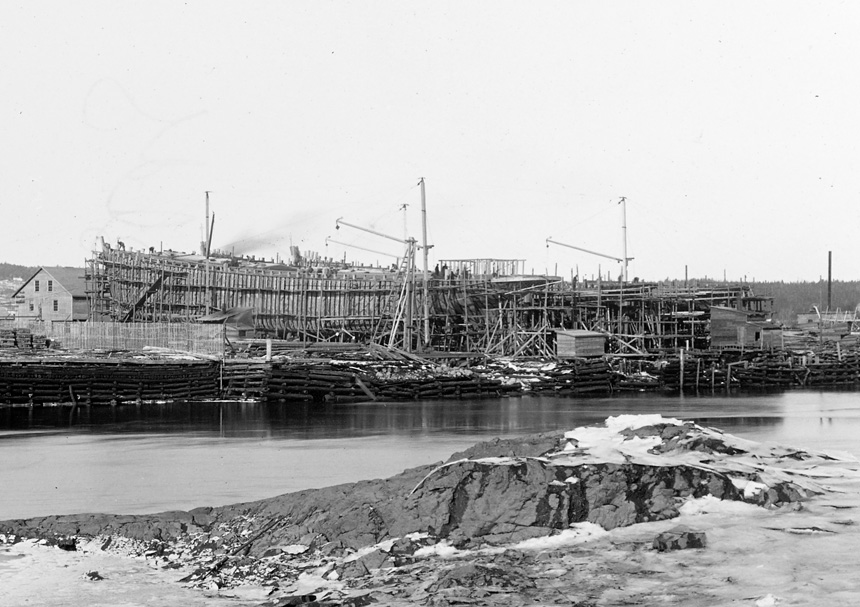

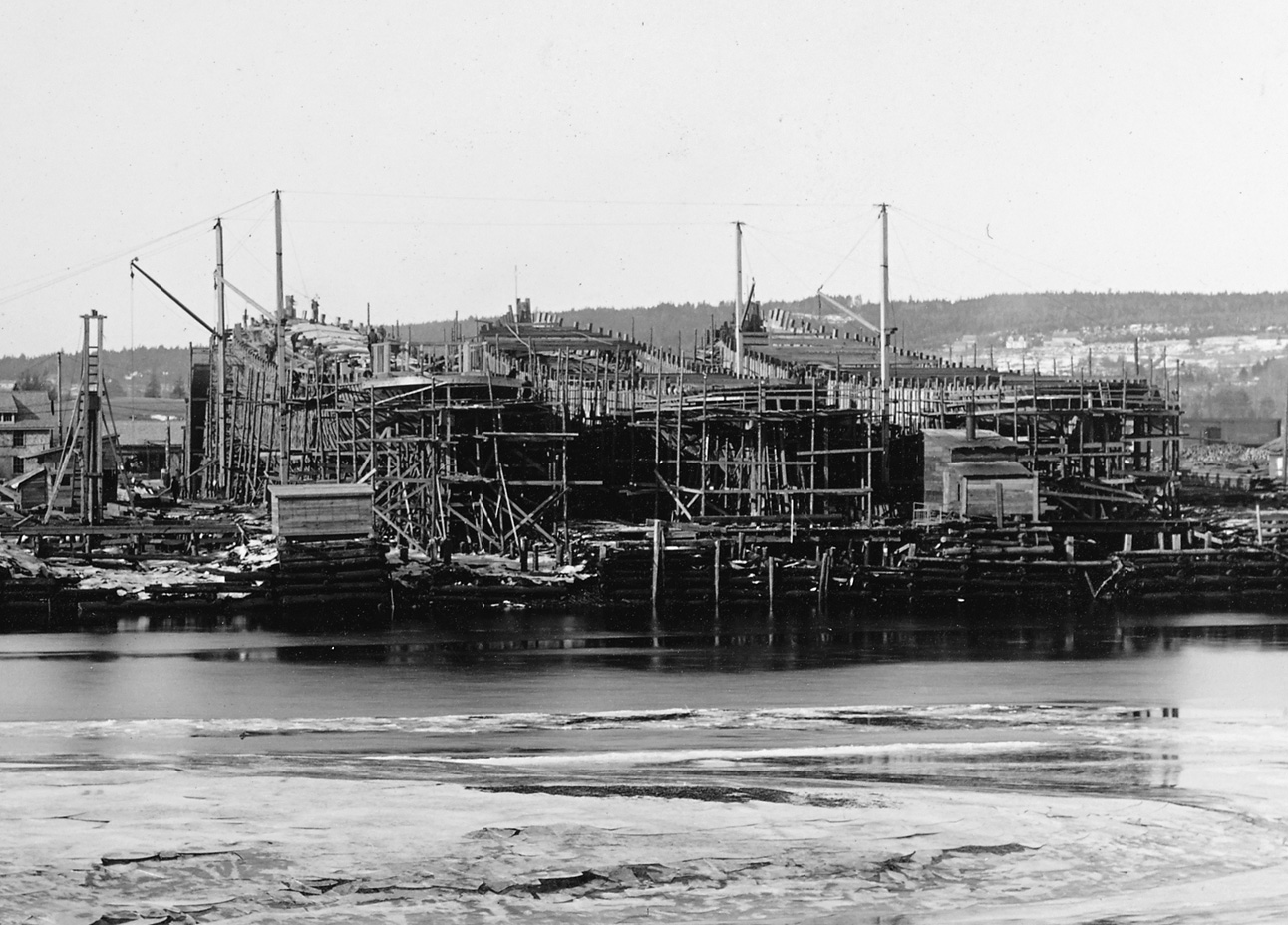

Barges Wellesley, Jonesport, and Cutler (Design 1067, EFC Hulls 2323-2325) The Design 1067 barges Wellesley ex Lubec, Jonesport ex Cutler, and Cutler ex Jonesport on the ways at the Machias Ship Construction Co., Machias, ME, during the winter of 1918-1919. Along with one cancelled hull these, EFC hulls 2323-2325 respectively, were the yard's only EFC order. Photo No. NH 43182 Source: Naval History and Heritage Command

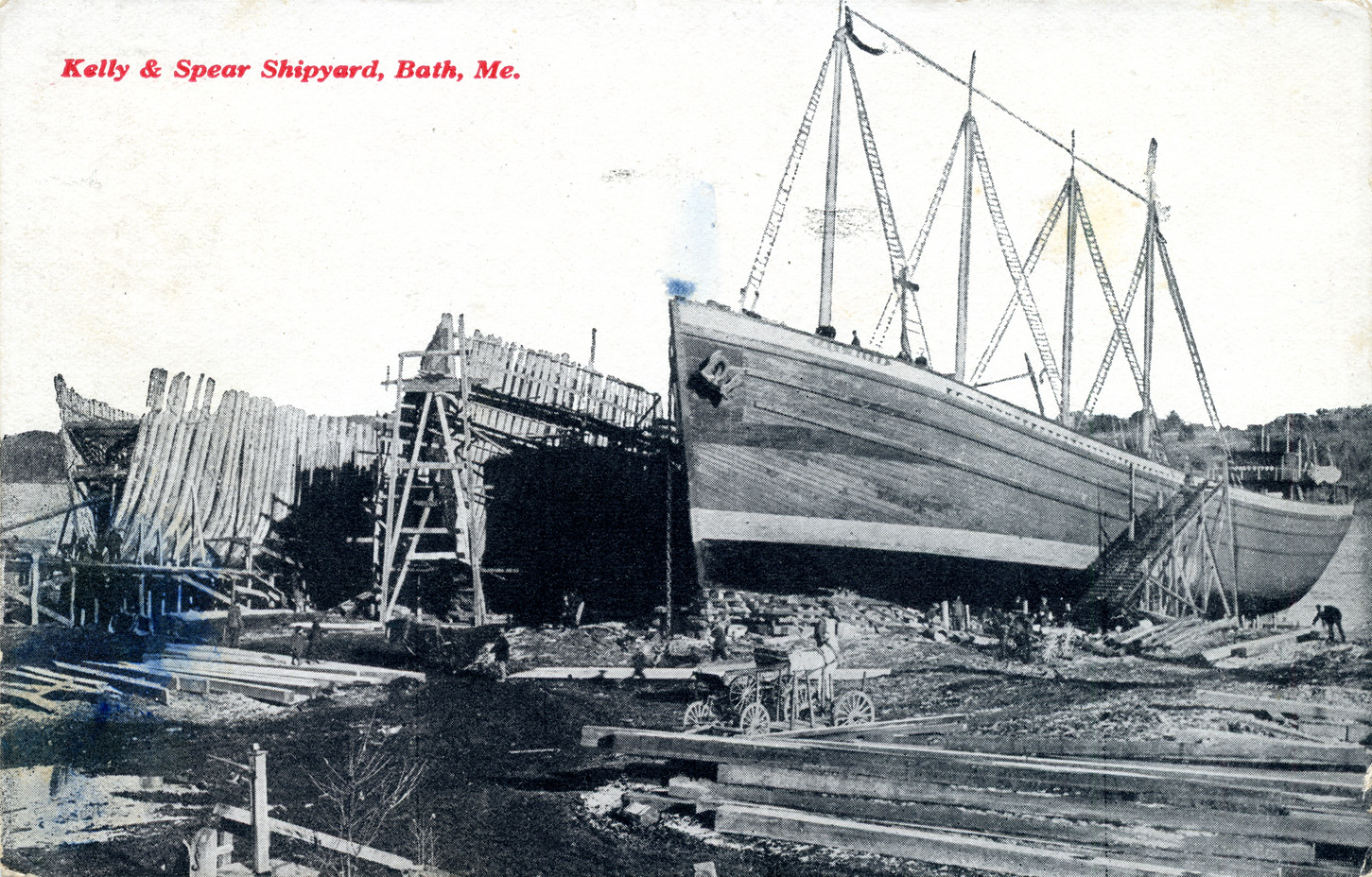

Barge New Meadows (Design 1067, Hull 2335) On the ways at Kelley, Spear & Co., Bath, Maine, in 1919. This yard received a contract for one Ferris Design 1001 ship (Columbine) followed by an order for six Design 1067 barges. This post card may show the yard after Columbine and the first of the barges, Winnegance, had been launched. Winnegance was launched on 31 July 1919 and delivered only eight days later and New Meadows was launched on 9 September 1919 and delivered nine days later. The vessels in frame are probably two of the four barges cancelled on 29 October 1918. It is possible that the card shows Winnegance. The four masts, if authentic, were not standard for this type, although they could have been fitted as in the abortive Design 1069 with only minor changes in hatch spacing. Photo No. None Source: Shipscribe

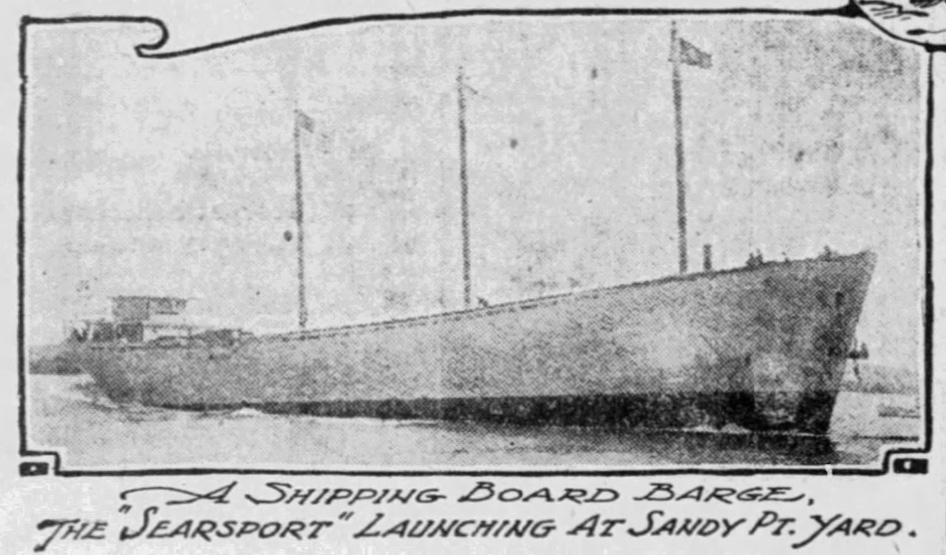

Barge Searsport (Design 1067, Hull 2477) After launching at the Sandy Point S.B. Co., Sandy Point, Maine. The three masts shown here and their positions match the drawing for Design 1067. Photo No. None Source: The Boston Globe, 8 February 1920, page 40

EFC Design 1067 (Ferris 2500-ton type): Notes & Illustrations
